| Brand Name : | WINSHOR |
| Model Number : | WF30001-0XX-T00X02 |
| Certification : | ROHS,SGS,ISO |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 weeks |

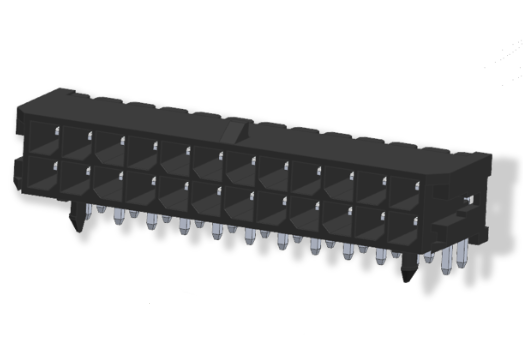

3.0mm Pitch Wafer WTB Wire To Board Connector Horizontal Smt Height
7.4mm
2.6 Temperature range:-25C~85C
2.7 Applicable cable regulations:AWG#30~#20

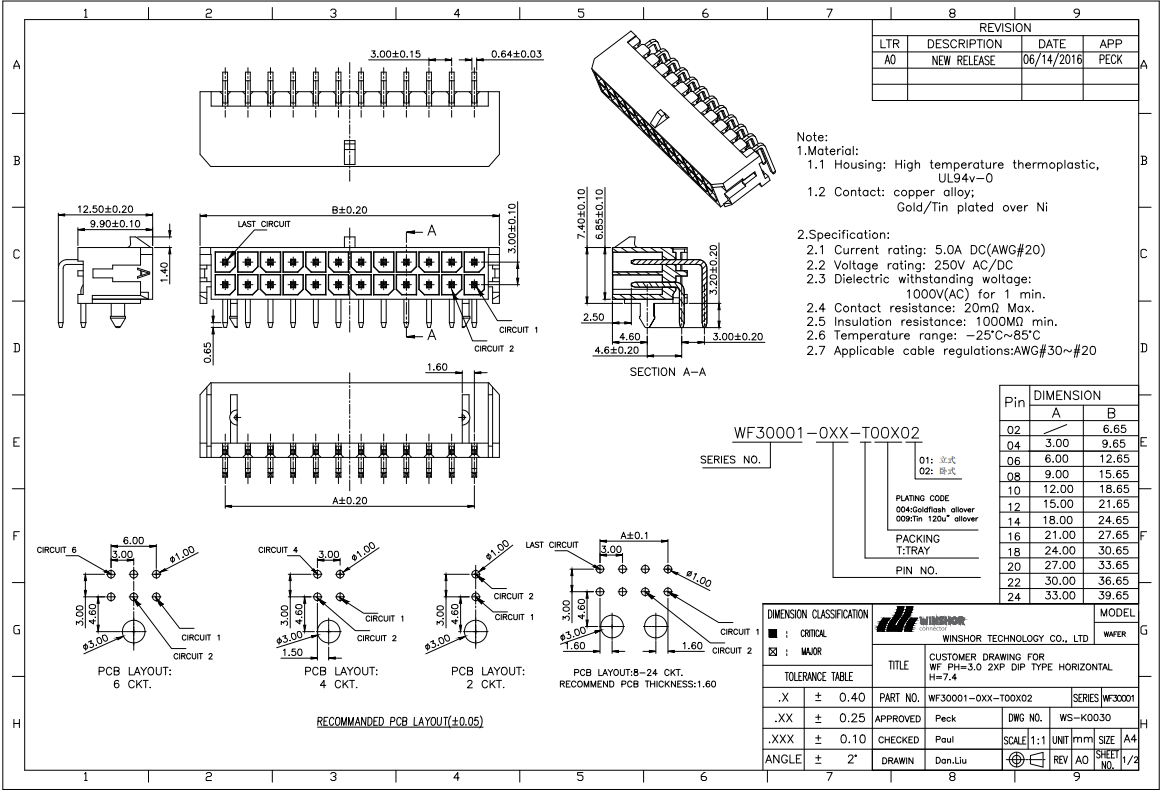

| Pin | DIMENSION | |
| A | B | |
| 02 | 6.65 | |
| 04 | 3.00 | 9.65 |
| 06 | 6.00 | 12.65 |
| 08 | 9.00 | 15.65 |
| 10 | 12.00 | 18.65 |
| 12 | 15.00 | 21.65 |
| 14 | 18.00 | 24.65 |
| 16 | 21.00 | 27.65 |
| 18 | 24.00 | 30.65 |
| 20 | 27.00 | 33.65 |
| 22 | 30.00 | 36.65 |
| 24 | 33.00 | 39.65 |
