Nano Sim Card Jack T Flash Card Socket Connector Tray With Ejector 3 Select 2 Type

1.FINISH
1-1.CONTACT:
CONTACT AREA:Au 15u”Min.;SW AREA:Au 5u”Min;GOLD PLATING ON SOLDER AREA,3u”Min.
1-2.SHELL:
SOLDER AREA:Au 3u”Min.
2.ELECTRICAL REQUIREMENTS:
2-1.CURRENT RATING:0.3A PER PIN.
2-2.CONTACT RESISTANCE:50 mOhm MAX.AFTER TEST:75 mOhm MAX
SWTCH RESISTANCE:100 mOhm MAX.AFTER TEST:125 mOhm MAX
2-3.INSULATION RESISTANCE:1000 MOhm MIN.200 VDC FOR 1 MINUTE.
2-4.WITHSTANDING STRENGTH:500V AC FOR 1 MINUTE.
3.MECHANICAL REQUIREMENTS:
3-1.TRAY_MATING FORCE:2~10N;TRAY UNMATING FORCE:6~10N?WTH CARD?
OPERATING FORCE:12N Max .
THE RESORPTION DISTANCE OF THE TRAY:0.4mm MIN
3-2.DURABILITY:3,000 CYCLES MIN.
4.ENVRONMENT REQUIREMENTS:
4-1.OPERATING TEMP:-30℃ T0 +85℃
4-2.STORAGE TEMPERATURE:-40℃ T0 +85℃

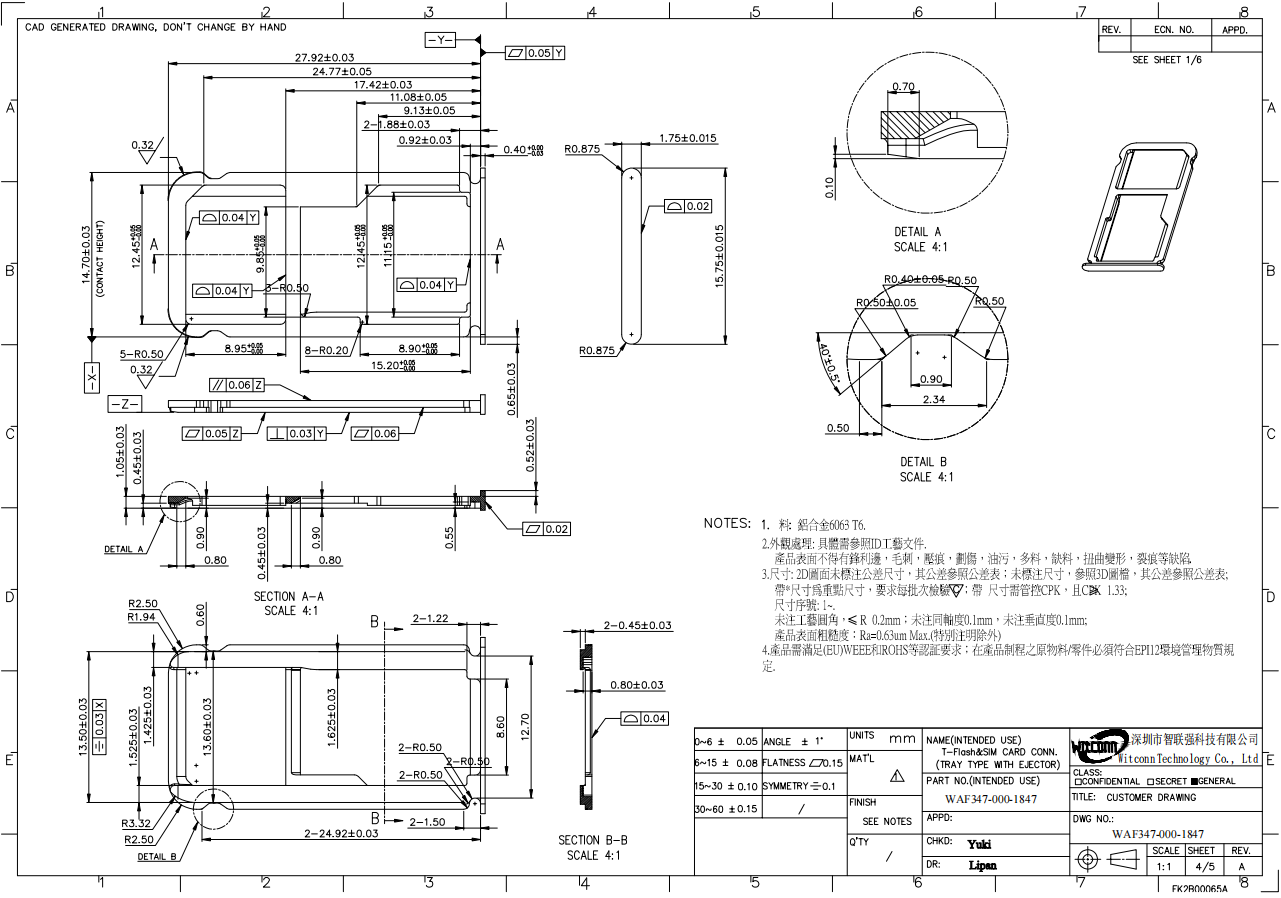

5.UNLESS OTHERWISE SPECIFIED,ALL DIMENSIONS ARE IN mm.
