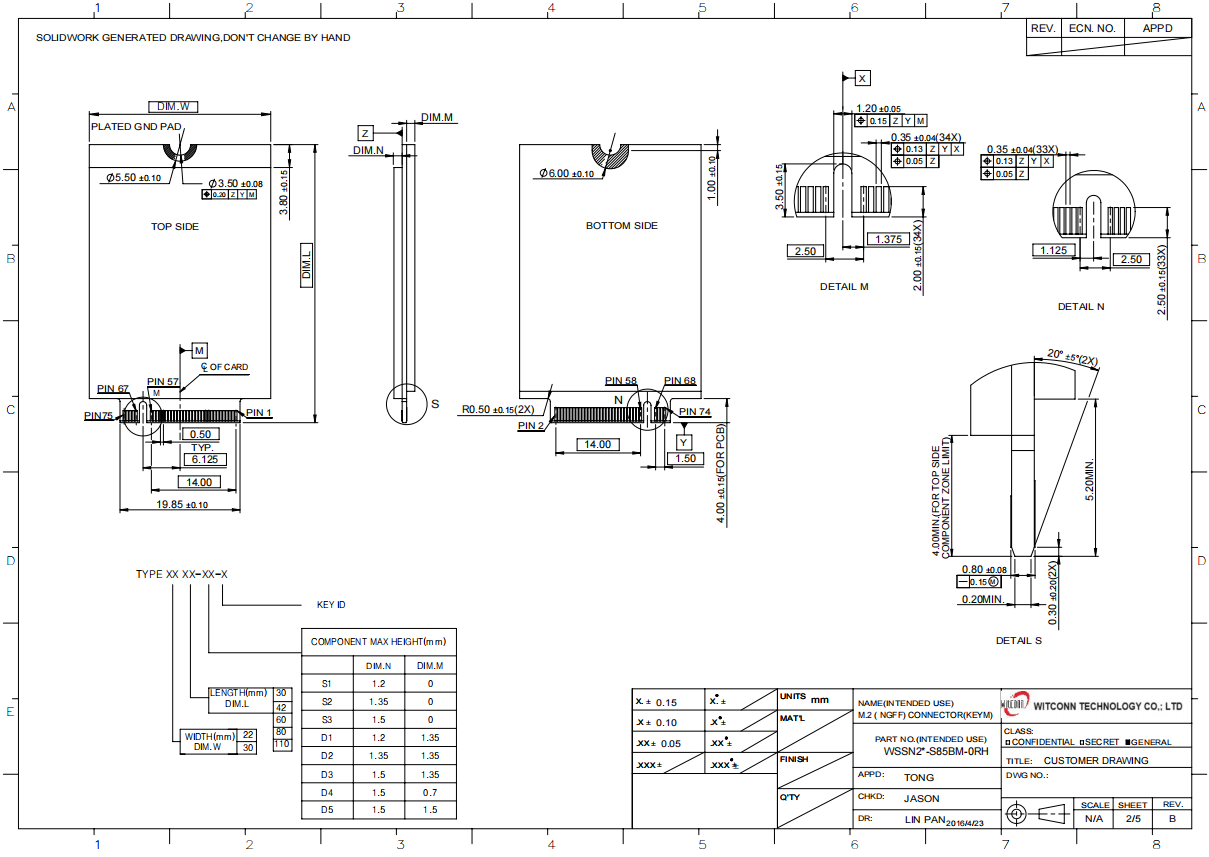

8.5mm Height KEY M NGFF M.2 Connector Next Generation Form Factor Connector Pitch 0.5mm

NOTES:
1.ELECTRICAL CHARACTERISTICS:
1.1 CONTACT CURRENT RATING:0.5 AMPERE MAX.PER PIN.
1.2 VOLTAGE RATING:50V AC.
1.3 INSULATION RESISTANCE:500 MEGAOHMS MIN.AT 500V DC;
1.4 DIELECTRIC WITHSTANDING VOLTAGE:300V AC RMS AT 60Hz,FOR 1 MINUTE.
1.5 CONTACTRESISTANCE:55 MILLIOHMS MAX.PER PIN INITIAL.
△R=20 MILLIOHMS MAX.PER PIN AFTER FULL ENVIRONMENT TESTING.
2.MECHANICAL CHARACTERISTICS:DURABILITY.60 MATING CYCLES.
3.OPERATION TEMPERATURE-40℃TO+80℃.
4.PLEASE CONTACT FOXCONN SALES REPRESENTATIVE TO VERIFY PRODUCT DETAIL &AVAILABILITY.
5.KEY LABLE "*"IS ACAPITAL LETTER PER THE PART NO.
6.RECOMMENDED PROCESS CONDITION:SMT,PEAK TEMPERATURE:260℃,10~20S.
