| Brand Name : | WITCONN |
| Model Number : | WIT-102593-482 |
| Certification : | ROHS,SGS,ISO |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 weeks |

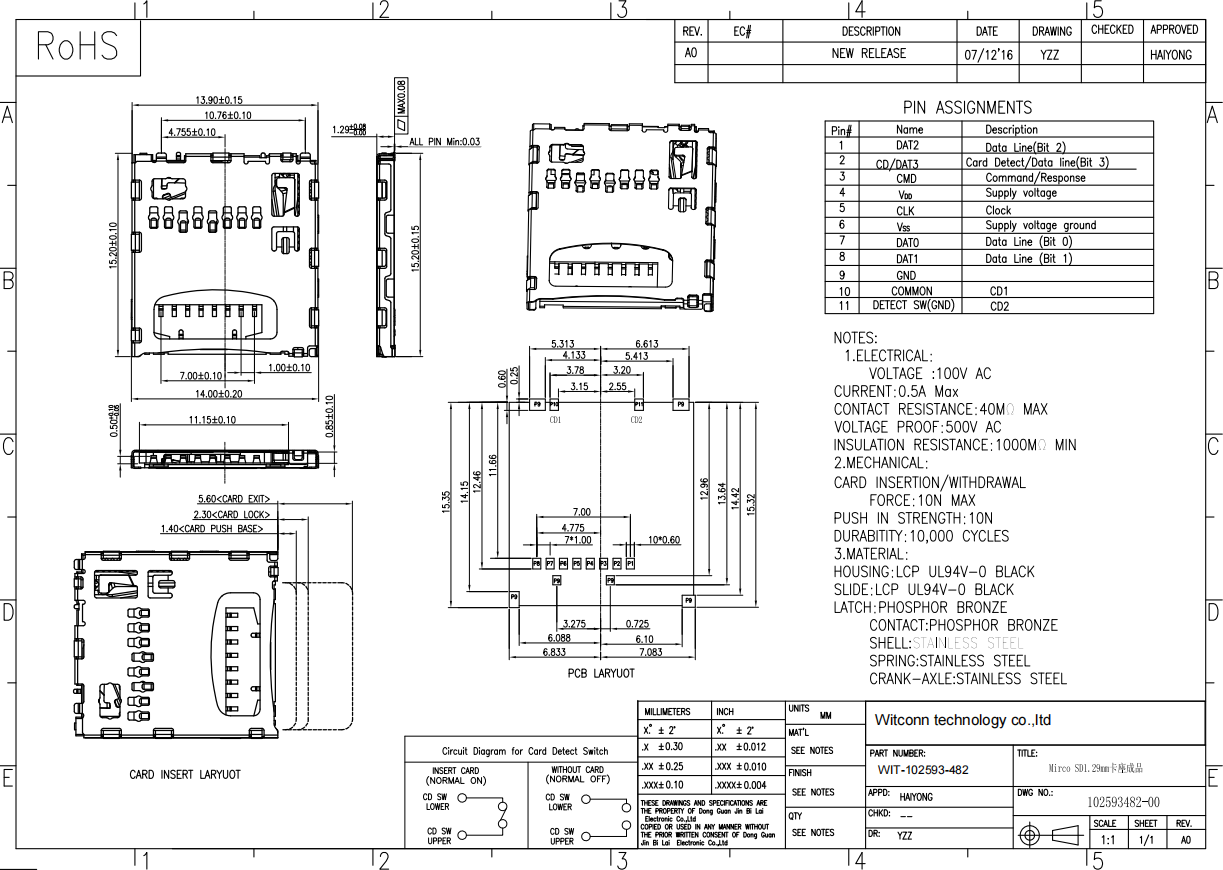

Ultrathin Push Push Micro SD Card Socket Push Pull T Card Connector Reel Package Height 1.29mm
NOTES:
1.ELECTRICAL:
VOLTAGE:100V AC
CURRENT:0.5A Max
CONTACT RESISTANCE:40MQ MAXVOLTAGE PROOF:500V AC
INSULATION RESISTANCE:100OM?MIN
2.MECHANICAL:CARD INSERTION/WITHDRAWAL
FORCE:10N MAX
PUSH IN STRENGTH:10N
DURABITITY:10,000 CYCLES
3.MATERIAL:
HOUSING:LCP UL94V-0 BLACK
SLIDE:LCP UL94V-0 BLACK
LATCH:PHOSPHOR BRONZE
CONTACT:PHOSPHOR BRONZE
SHELL:STAINLESS STEEL
SPRING:STAINLESS STEEL
CRANK-AXLE:STAINLESS STEEL
| Pin# | Name | Description |
| 1 | DAT2 | Data Line(Bit 2) |
| 2 | CD/DAT3 | Card Detect/Data line(Bit 3) |
| 3 | CMD | Command/Response |
| 4 | Voo | Supply voltage |
| 5 | CLK | Clock |
| 6 | Vss | Supply voltage ground |
| 7 | DATO | Data Line(Bit 0) |
| 8 | DAT1 | Data Line(Bit 1) |
| 9 | GND | |
| 10 | COMMON | CD1 |
| 11 | DETECT SW(GND) | CD2 |
