    IPX8 USB Connectors SMT 24 Pins USB Type C Vertical Connector

    Ask Lasest Price
    Brand Name : WITCONN
    Model Number : WTC100-1117-00R
    Payment Terms : T/T
    Delivery Time : 1-3 weeks
    • Product Details
    • Company Profile

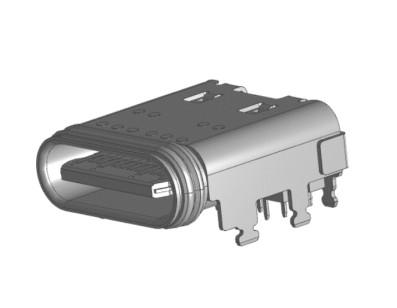

    IPX8 USB Connectors SMT 24 Pins USB Type C Vertical Connector

    USB 3.0 24 Pins Type C Connector Vertical SMT Double SMT Length 7.45mm Water Proof IPX8


    PINSIGNAL NAMEPINSIGNAL NAME
    A1GNDB12GND
    A2SSTXp1B11SSRXp1
    A3SSTXn1B10SSRXn1
    A4VBUSB9VBUS
    A5CC1B8SBU2
    A6Dp1B7Dn2
    A7Dn1B6Dp2
    A8SBU1B5CC2
    A9VBUSB4VBUS
    A10SSRXn2B3SSTXn2
    A11SSRXp2B2SSTXp2
    A12GNDB1GND
    FOUR GND PIN(A1,A12,B1,B12)ARE CONNECTED
    FOUR VBUS PIN(A4,A9,B4,B9)ARE CONNECTED

    O-RING1RUBBER
    6TOP CONTACT12C7025
    BOTTOM CONTACT12C7025
    SHIELDING PLATE1SUS301-EH
    HOUSING1Nylon;ORANGE
    MAIN SHELL1SUS304
    TOP SHELL1SUS304
    ITEMDESCRIPTIONQ'TYMATERIAL

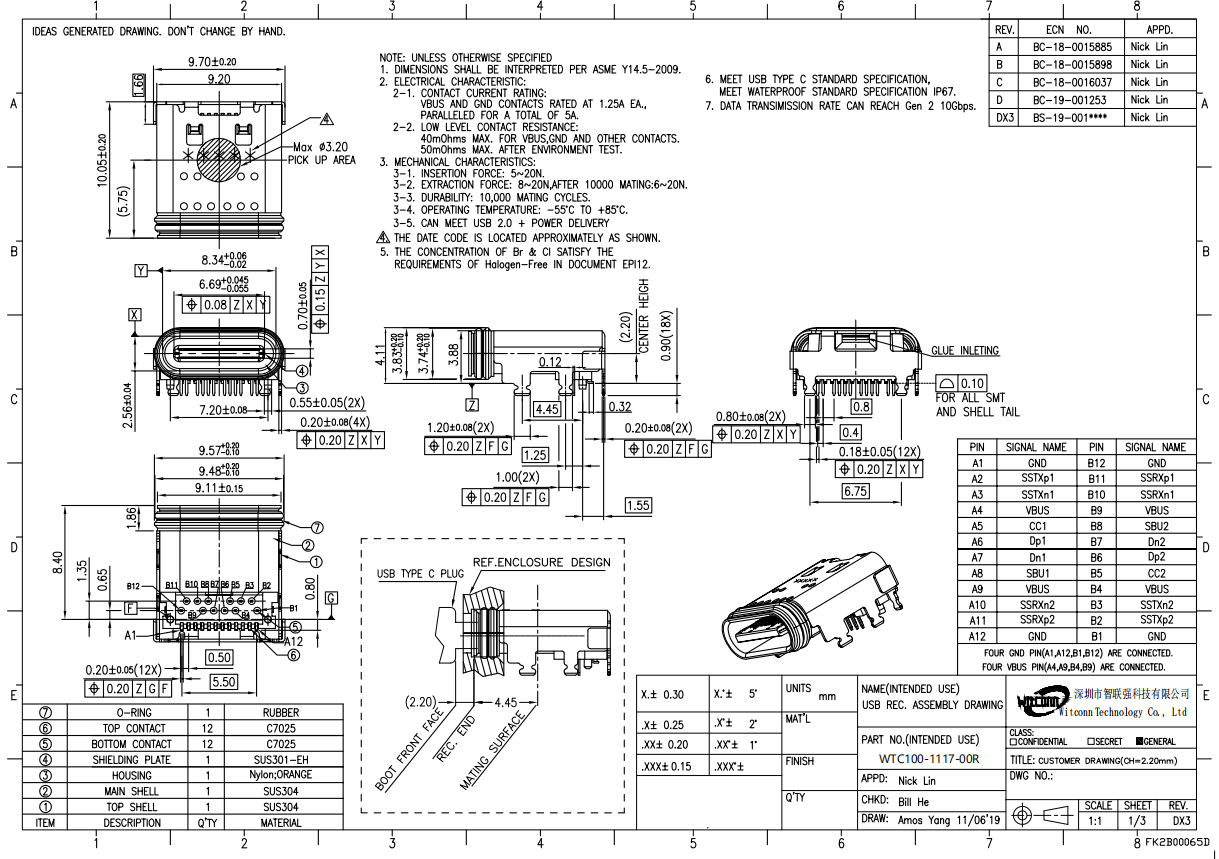

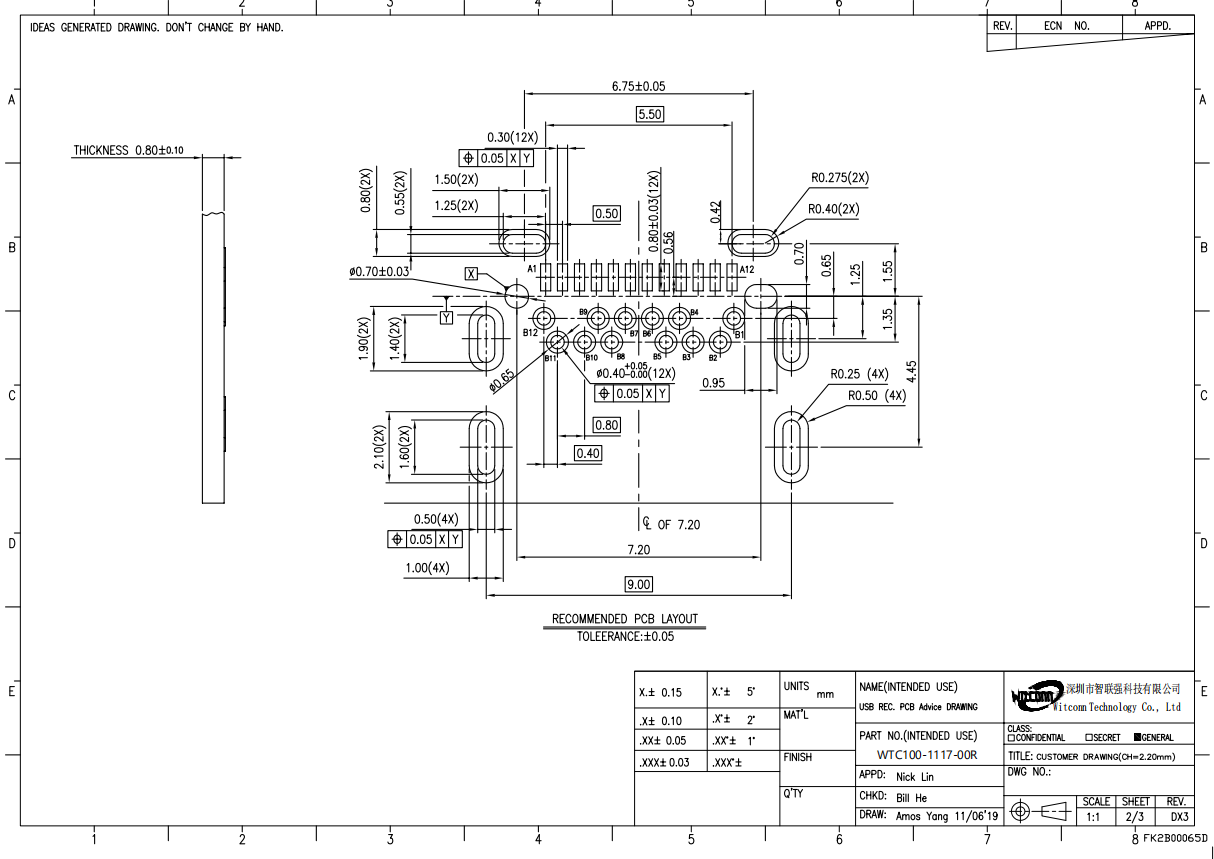

    NOTE:UNLESS OTHERWISE SPECIFIED

    1.DIMENSIONS SHALL BE INTERPRETED PER ASME Y14.5-2009.

    2.ELECTRICAL CHARACTERISTIC:

    2-1.CONTACT CURRENT RATING:

    VBUS AND GND CONTACTS RATED AT 1.25A EA.,PARALLELED FOR A TOTAL OF 5A.

    2-2.LOW LEVEL CONTACT RESISTANCE:

    40mOhms MAX.FOR VBUS,GND AND OTHER CONTACTS.50mOhms MAX.AFTER ENVIRONMENT TEST.

    3.MECHANICAL CHARACTERISTICS:

    3-1.INSERTION FORCE:5~20N.

    3-2.EXTRACTION FORCE:8~20N,AFTER 10000 MATING:6~20N.

    3-3.DURABILITY:10,000 MATING CYCLES.

    3-4.OPERATING TEMPERATURE:-55C TO +85'C.

    3-5.CAN MEET USB 2.0 +POWER DELIVERY

    4.THE DATE CODE IS LOCATED APPROXIMATELY AS SHOWN.

    5.THE CONCENTRATION OF Br &CI SATISFY THE

    REQUIREMENTS OF Halogen-Free IN DOCUMENT EPI12.

    6.MEET USB TYPE C STANDARD SPECIFICATION,

    MEET WATERPROOF STANDARD SPECIFICATION IP67.

    7.DATA TRANSIMISSION RATE CAN REACH Gen 210Gbps.
