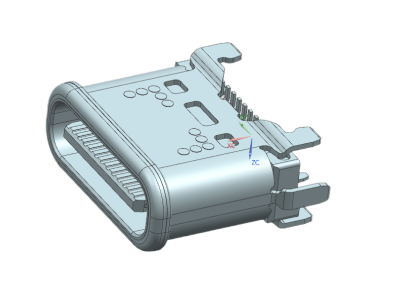

USB 3.0 24 Pins Type C Connector Vertical SMT Double SMT Length 7.45mm Water Proof IPX8

NOTES:

1. MATERIAL:SEE TABLE2. GENERAL SPECIFICATION:

2.1 COPLANARITY:0.10 Max.

2.2 CURRENT RATING:5A 2.3 CONTACT RESISTANCE:40m2 MAX(INITIAL).

INSULATION RESISTANCE:100MΩ Min

2.4 DIELECTRIC WITHSTANDING VOLTAGE:100 VAC

2.5 MECHANICAL CHARACTERISTICS:

INSERTION FORCE:5~20N EXTRACTION FORCE:8~20N

AFTER DURABILITY EXTRACTION FORCE:6~20N

2.6 DURABILITY:10000 CYCLES 2.7 PACKAGING TYPE:CARRIER TAPE3. WATERPROOF CLASS IPX84. DIMENSIONING SHALL BE INTERPRETED PER ASME Y14.5M 1994.
