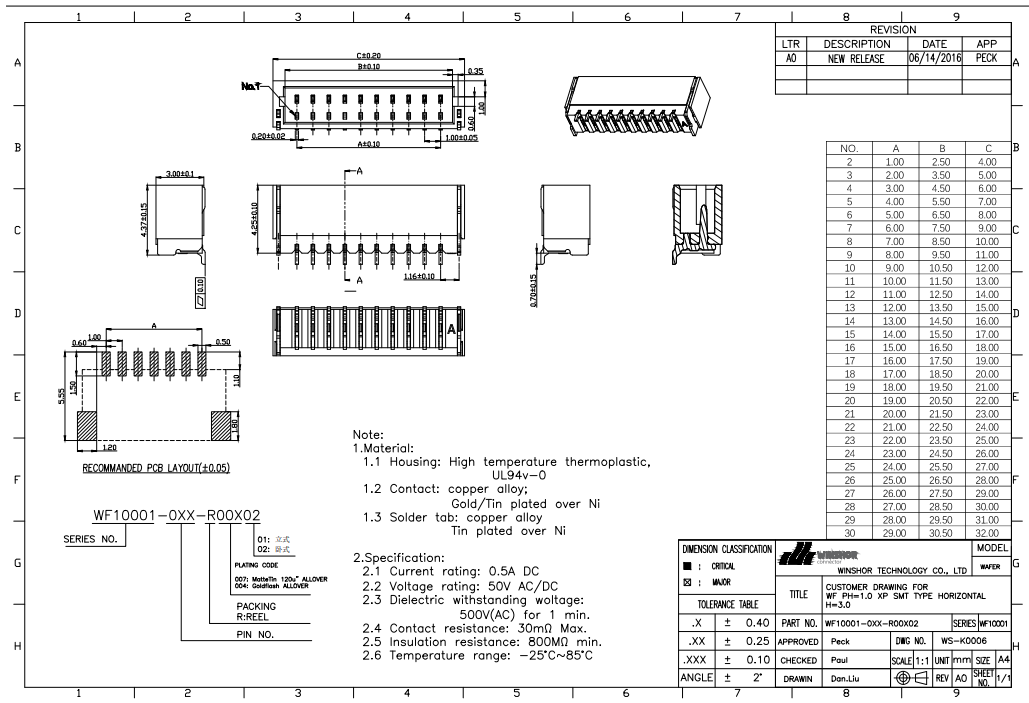

WTB 1.0mm Pitch Wafer Wire To Board Connector Horizontal Smt Height 3.0mm

2.Specification:
2.1 Current rating:0.5A DC
2.2 Voltage rating:50V AC/DC
2.3 Dielectric withstanding woltage:500V(AC)for 1 min.
2.4 Contact resistance:30m?Max.
2.5 Insulation resistance:800MΩ min.
2.6 Temperature range:-25C~85℃

About Us: ZSUN TECH

Brand Advantage:

Contact Us:

Sales Manager: Rose

Email: Rose@zsun-chips.com

ZSUN is a senior enterprise specializing in the research and development, production and sales of EMC components, connectors, cables and Integrated Circuits (ICs). Its headquarter is located in Shenzhen. It consists of a professional team with an average of over 10 year of expertise in the field of electronic components. The main products include: high current power inductors, Moding power choke, NR inductors, SMD power inductors, DIP inductors, Rod inductors, DC& signal common mode choke, AC common mode choke, transformers , Board-to-board connectors, wire-to-board connectors, communication interfaces, terminals, European connectors, crimp terminals and high-speed connectors, etc., are widely used in industrial control, automotive electronics, medical electronics, new energy motors, ...
