| Brand Name : | WINSHOR |
| Model Number : | WF10001-0XX-R00X01 |
| Certification : | ROHS,SGS,ISO |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 weeks |

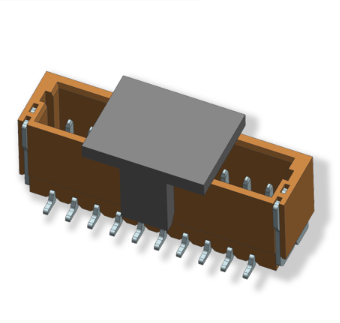

WTB 1.0mm Pitch Wafer Wire To Board Connector Vertical Smt Height 4.4mm
Note:
1.Material:
1.1 Housing/Cover:High temperature thermoplastidUL94v-0
1.2 Contact:copper alloy;
Gold/Tin plated over Ni
1.3 Solder tab:copper alloyTin plated over Ni
2.Specification:
2.1 Current rating:0.5A DC
2.2 Voltage rating:50V AC/DC
2.3 Dielectric withstanding woltage:500V(AC)for 1 min.
2.4 Contact resistance:30m?Max.
2.5 Insulation resistance:800MΩ min.
2.6 Temperature range:-25C~85℃
| NO. | A | B | C |
| 2 | 1.00 | 2.50 | 4.00 |
| 3 | 2.00 | 3.50 | 5.00 |
| 4 | 3.00 | 4.50 | 6.00 |
| 5 | 4.00 | 5.50 | 7.00 |
| 6 | 5.00 | 6.50 | 8.00 |
| 7 | 6.00 | 7.50 | 9.00 |
| 8 | 7.00 | 8.50 | 10.00 |
| 9 | 8.00 | 9.50 | 11.00 |
| 10 | 9.00 | 10.50 | 12.00 |
| 11 | 10.00 | 11.50 | 13.00 |
| 12 | 11.00 | 12.50 | 14.00 |
| 13 | 12.00 | 13.50 | 15.00 |
| 14 | 13.00 | 14.50 | 16.00 |
| 15 | 14.00 | 15.50 | 17.00 |
| 16 | 15.00 | 16.50 | 18.00 |
| 17 | 16.00 | 17.50 | 19.00 |
| 18 | 17.00 | 18.50 | 20.00 |
| 19 | 18.00 | 19.50 | 21.00 |
| 20 | 19.00 | 20.50 | 22.00 |
| 21 | 20.00 | 21.50 | 23.00 |
| 22 | 21.00 | 22.50 | 24.00 |
| 23 | 22.00 | 23.50 | 25.00 |
| 24 | 23.00 | 24.50 | 26.00 |
| 25 | 24.00 | 25.50 | 27.00 |
| 26 | 25.00 | 26.50 | 28.00 |
| 27 | 26.00 | 27.50 | 29.00 |
| 28 | 27.00 | 28.50 | 30.00 |
| 29 | 28.00 | 29.50 | 31.00 |
| 30 | 29.00 | 30.50 | 32.00 |
