| Brand Name : | WINSHOR |
| Model Number : | WF15001-0XX-R00X01 |
| Certification : | ROHS,SGS,ISO |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 weeks |

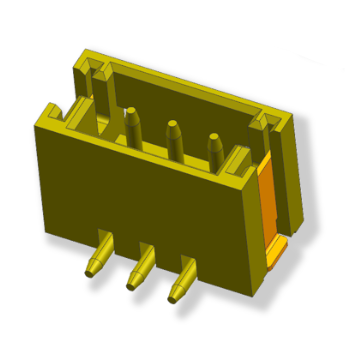

1.5mm Pitch Wafer WTB Wire To Board Connector Vertical Smt Height 5.0mm
| PIN NO. | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| A | 1.50 | 3.00 | 4.50 | 6.00 | 7.50 | 9.00 | 10.50 | 12.00 | 13.50 | 15.00 | 16.50 | 18.00 | 19.50 | 21.00 | 22.50 |
| B | 3.60 | 5.10 | 6.60 | 8.10 | 9.60 | 1.10 | 12.60 | 14.10 | 5.60 | 17.10 | 18.60 | 20.10 | 21.60 | 23.10 | 24.60 |
| C | 6.00 | 7.50 | 9.00 | 10.50 | 12.00 | 13.50 | 15.00 | 16.50 | 18.00 | 19.50 | 21.00 | 22.50 | 24.00 | 25.50 | 27.00 |
|
|
