| Brand Name : | WINSHOR |
| Model Number : | WF25001-0XX-R00X01 |
| Certification : | ROHS,SGS,ISO |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 weeks |

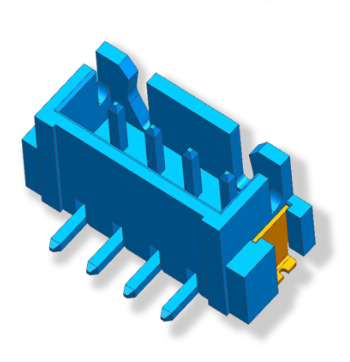

2.5mm Pitch Wafer WTB Wire To Board Connector Vertical Smt Height
7.8mm
| PIN NO | A | B | C |
| 2P | 2.5 | 7.45 | 10.0 |
| 3P | 5.0 | 9.95 | 12.5 |
| 4P | 7.5 | 12.45 | 15.0 |
| 5P | 10.0 | 14.95 | 17.5 |
| 6P | 12.5 | 17.45 | 20.0 |
| 7P | 15.0 | 19.95 | 22.5 |
| 8P | 17.5 | 22.45 | 25.0 |
| 9P | 20.0 | 24.95 | 27.5 |
| 10P | 22.5 | 27.45 | 30.0 |
| 11P | 25.0 | 29.95 | 32.5 |
| 12P | 27.5 | 32.45 | 35.0 |
| 13P | 30.0 | 34.95 | 37.5 |
| 14P | 32.5 | 37.45 | 40.0 |
| 15P | 35.0 | 39.95 | 42.5 |
| 16P | 37.5 | 42.45 | 45.0 |
